Yes, I'm currently using the DCC-E2 program, but I often run into problems with it, especially on a 64-bit system
Posts by darog69
-
-

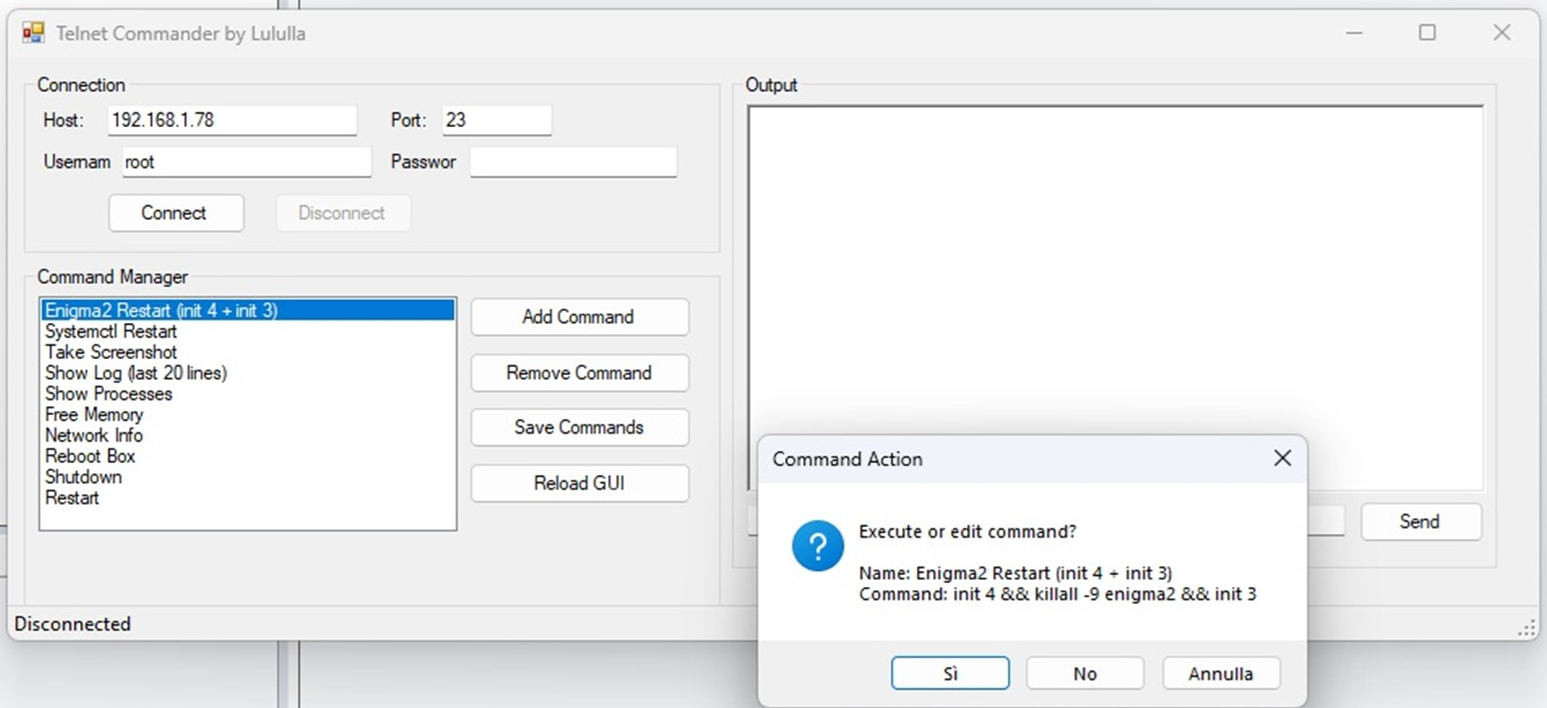

What I mean is that you can save various commands in this Telnet Commander and have them readily available there.

-
Lululla , do you have Telnet Manager as a separate plugin? If not, it might be worth creating one, because it’s a very useful tool.
Best regards
-
Hi, is there a version of OpenBH 6.0.000 available for Duo4k?
-
mauriz Thanks, that's how it works, but not everyone will figure it out.

-
Unfortunately, the file isn't there, but after creating it manually, the option to add cities becomes available—though I don't think that's how it's supposed to work. The script should create all the necessary files.
Edit: It seems to me that after entering the
menu/city selection
and selecting one of the colored buttons (green, yellow, blue),
an option to enter or edit a city should appear, but the buttons aren't responding.
-
I installed the latest version, 1.2.3,
and I can't edit or add my own city. I'm getting a message saying there's no list of cities.
Image Egami 11
-
-
Hi oktus, can you please get these bootlogo but without the version number?
https://www.linuxsat-support.com/cms/attachment/252846-linuxsat-support-com-jpg/
-
There are problems when entering ChannelSelection. The first time is fine, but re-entering ChannelSelection causes the OSD graphics to disappear from the TV screen as well as the LCD display

-
samur you can ask for a binary for arm vu+, octagon sf, etc. tuners, but without emu?

-
samur Thank you, the first version fired from the first shot
Ps. In my free time I will test both binaries on Stinger and Phoenix
-
bigapple If you are writing to me, check the spoiler to see that I have defined what card should be read
nagra_read = 1
detect_seca_nagra_tunneled_card= 0
-
The reader works on another OSCAM, so I don't need to install anything. Read before you write something

Ps. samur
I also tested the cards under the Stinger reader and the Conax 0B01 card works, but the 1884 card does not.
You may need some specific settings in the rayder
[reader]
label = StingerA
protocol = mouse
device = /dev/serial/by-id/usb-FTDI_StingerUSB_3A004580-if00-port0
caid = 1884
mod1 = xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
mod2 = xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
key3588 = xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
key3460 = xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
key3310 = xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
data50 = xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
mod50 = xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
idird = xxxxxxxx
cwpkcaid = 18FE
otpcsc = 00FF
cwpkota = 1
nuid = xxxxxxxxxxxxxxxxxxxxx
cwekey = xxxxxxxxxxxxxxxxxxxxxxxxxxx
detect = cd
nagra_read = 1
detect_seca_nagra_tunneled_card= 0
group = 1
emmcache = 1,1,2,0
disablecrccws = 1
-
samur I also connected the Phoenix reader and the 1884 card worked on it, and neither 1084 nor 0B01 want to work on the PCSC
-
I have data, I have been using it for several years and I added it to your reader, but I will not publish it here. I know that there are slight differences in reader settings between oscam from s4all and yours
-
I added the entry you entered, supplemented it with the necessary data, but I still have it
ERROR
(no entitlements)Live log
2024/01/05 14:31:57 00000000 s (main) System name = Linux
2024/01/05 14:31:57 00000000 s (main) Host name = wyse-3040-volumio
2024/01/05 14:31:57 00000000 s (main) Release = 5.10.188-volumio
2024/01/05 14:31:57 00000000 s (main) Version = #1 SMP Mon Aug 7 14:08:06 CEST 2023
2024/01/05 14:31:57 00000000 s (main) Machine = x86_64
2024/01/05 14:31:57 00000000 s (main) creating pidfile /tmp/.oscam/oscam.pid with pid 836
2024/01/05 14:31:57 00000000 s (config) userdb reloaded: 9 accounts loaded, 0 expired, 5 disabled
2024/01/05 14:31:57 00000000 s (main) signal handling initialized
2024/01/05 14:31:57 00000000 s (config) 1000 provid's loaded
2024/01/05 14:31:57 00000000 s (config) 246 tier-id's loaded
2024/01/05 14:31:57 00000000 s (net) cccam: initialized (fd=3, port=xxxxxx)
2024/01/05 14:31:57 03435070 h (webif) webif: decompressed 173997 bytes back into 457256 bytes
2024/01/05 14:31:57 03435070 h (webif) HTTP Server running. ip=0.0.0.0 port=xxxxx
2024/01/05 14:31:57 00000000 s (reader) Platforma_CANAL+ [pcsc] creating thread for device 0
2024/01/05 14:31:57 00000000 s (main) waiting for local card init
2024/01/05 14:31:58 2D819428 r (reader) Platforma_CANAL+ [pcsc] Reader initialized (device=0, detect=cd, mhz=368, cardmhz=368)
2024/01/05 14:31:58 2D819428 r (reader) Platforma_CANAL+ [pcsc] PCSC was opened with handle: 1533895028
2024/01/05 14:31:58 2D819428 r (reader) Platforma_CANAL+ [pcsc] card detected
2024/01/05 14:31:59 2D819428 r (reader) Platforma_CANAL+ [pcsc] ATR: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
2024/01/05 14:31:59 2D819428 r (-) -- Skipped 1 duplicated log lines --
2024/01/05 14:31:59 2D819428 r (reader) Platforma_CANAL+ [pcsc] detected card (Cayman) in CAK7 mode
2024/01/05 14:32:00 2D819428 r (reader) Platforma_CANAL+ [pcsc] Rom revision: DNASP420 RevS4B
2024/01/05 14:32:10 2D819428 r (reader) Platforma_CANAL+ [pcsc] card is not responding to CMD02/E - check your data
2024/01/05 14:32:10 2D819428 r (reader) Platforma_CANAL+ [pcsc] card system not supported
2024/01/05 14:32:10 2D819428 r (reader) Platforma_CANAL+ [pcsc] Normal mode failed, reverting to Deprecated Mode
2024/01/05 14:32:10 2D819428 r (reader) Platforma_CANAL+ [pcsc] ATR: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
2024/01/05 14:32:10 2D819428 r (-) -- Skipped 1 duplicated log lines --
2024/01/05 14:32:10 2D819428 r (reader) Platforma_CANAL+ [pcsc] detected card (Cayman) in CAK7 mode
2024/01/05 14:32:11 2D819428 r (reader) Platforma_CANAL+ [pcsc] Rom revision: DNASP420 RevS4B
2024/01/05 14:32:21 2D819428 r (reader) Platforma_CANAL+ [pcsc] card is not responding to CMD02/E - check your data
2024/01/05 14:32:21 2D819428 r (reader) Platforma_CANAL+ [pcsc] card system not supported
2024/01/05 14:32:21 2D819428 r (reader) Platforma_CANAL+ [pcsc] THIS WAS A FAILED START ATTEMPT No 1 out of max allotted of 1
2024/01/05 14:32:21 2D819428 r (reader) Platforma_CANAL+ [pcsc] card initializing error
2024/01/05 14:32:21 00000000 s (main) init for all local cards done
2024/01/05 14:32:21 00000000 s (emmcache) loaded 0 emmcache records from /usr/local/etc/oscam.emmcache in 0 ms
2024/01/05 14:32:21 00000000 s (emmcache) loaded 0 emmstat records from /usr/local/etc/oscam.emmstat in 0 ms
2024/01/05 14:32:44 78C2293D c (client) encrypted cccam-client 192.168.188.22 granted (ustym4kpro, au=auto (2 reader))
2024/01/05 14:32:45 50EC1E9E c (client) encrypted cccam-client 192.168.188.105 granted (vuduo4k, au=auto (2 reader))
2024/01/05 14:32:56 50EC1E9E c (ecm) vuduo4k (0BC5-0000.[1884---8F].BF6FA5FD/-HOP:00): rejected group (0 ms) (no matching reader)
-
Probably not, what you wrote is for the Phoenix reader
-
I have pcsc drivers installed on the server, I use OSCam from @jej@n, but I wanted to test OSCam from my friend samur. This is what my rayder for the 1884 card looks like
[reader]
label = Platforma_CANAL+
protocol = pcsc
device = 0
caid = 1884
mod1 = BF5675BBA4B2CD3B1DB0F6ADE5CC1EDFCCCEB265A807465223AF9E0E26A97709F6DA14DED4F48849CECCD750B4DF2EE7CE375A957384A9336B34C624DB7311CDBDF6C958BCF4E30B713FE594E0449A6C211CE74F8410136DB1B50EE4D8AFE142330AFBE63214E4372CE8553C2E55CA89
mod2 = 8150EA00DAEB256C17F7A303E9AC5FBA63815F32B3E11D224F324055DE7301EB6EAC8869F2547A613551EEE458A03310AAFE2438152277E34024610268DF3D1A540260D4FDAAFEE2D03583628E925D11C48E1B5B947F0602E7CBB57034A6996E0BB0A42F3D5CEFB8E9C4B8E588EA7529
key3588 = xxxxxxxxxxxxxxxxxxxxxx
key3460 = xxxxxxxxxxxxxxxxxxxxxx
key3310 = xxxxxxxxxxxxxxxxxxxxxx
data50 = B6711C868C3EE72533A4E08C1364B83AEEFDEBE9FB54156A8776D872CBC41FF2E5EA2CBAF4F26A58C521EC53E310FC494354E49ECE6CD0F9631B724FAB0C8BAEC1F66C346AD2DB1CB3871AF44C1E1592
mod50 = DB9E1F1BD23C6153444E444D8E6C471E162EC63C599D44F476E0D40C3840E0FDB7B63D174DD73B575543983F2F2DFB94E3644958AE642C91636A6BE55528478EB7A422479598C68E6F1FC9D647BBC4D5
idird = xxxxxxxxx
cwpkcaid = 18FE
otpcsc = 00FF
cwpkota = 1
nuid = xxxxxxxxxxxxxxxxxxxxxx
cwekey = xxxxxxxxxxxxxxxxxxxxxx
detect = cd
nagra_read = 1
detect_seca_nagra_tunneled_card= 0
group = 1
emmcache = 1,1,2,0
disablecrccws = 1 -
Hello, does OSCam-11727 (Ubuntu x86_64). support PCSC readers?
