Posts by atkmani

Quote from lacierva

@georgeflu+jensen

this morning i left the channel on animal planet turkey hd, i have just got in now and turned tv on, and screen was still black , then switched to discovery world and bingo the channel was there and emu ok, strange though that animal planet turkey hd is still black, not that i am bothered though,, thanks for help guys,

@ jenseneverest,

is that skin you got only available on pure image ? does anything similar exist for open pli ?

I have tested your [dvbapi] settings and it generate many errors ATV 6.4 just wonder some stuff

pmt_mode = 6 # use PMT server mode ; why not pmt_mode = 0 # use camd.socket and PMT file (default) ?

ecminfo_type = 4 ; Define the type of ecm.info file to create, ecminfo_type = 4 cccam if I understand this is for emu part ofoscamonly?

user = dvbapiau ? this is for emu internal use no need for any creativity here localuser is just fine.

extended_cw_api = 2 ;

0 - disabled (default)

1 - OE 2.2

2 - OE 2.0

My box/image OE 3.5 don't like = 2 ; best seems extended_cw_api = 1 and PowerVU is working

Here my settings Vu+Solo2/ ATV 6.4

[dvbapi]

enabled = 1

au = 1

pmt_mode = 0

delayer = 60

user = localuser

extended_cw_api = 1

read_sdt = 1

write_sdt_prov = 1

boxtype = dreambox

Quote from georgeflu

it isn't an issue... it is an option which looks like an issue in that point, but it could be a "save" in something else...

i can't tell you something about blackhole. maybe it is default this way of scanning, or there is the option and it is pre-selected the "no".

so finally if you do a scan in a way that i am telling above in openatv (and any oe alliance image , and all openpli based images) you have the option to scan

service reference : 1:0:1:514:1:5E:300000:0:0:0 "on" in "ignore dvbs namespace..."

service reference : 1:0:1:514:1:5E:30B022:0:0:0 "off" in "ignore dvbs namespace..."

also, select the "clear before scan" to replace the faulty channel...

Display More

Thanks for great advice m8 regarding oe alliance images.

If only we can use Biss style one key for whole transponder for PowerVu

eg. ERT (3.0°E)

F 0064212C 00000000 XXXXXX33XXXXXX33 ; ERT (3.0°E) 12702H

F 0066212C 00000000 XXXXXX33XXXXXX33 ; ERT (3.0°E) 12720H

F 0069212C 00000000 XXXXXX33XXXXXX33 ; ERT (3.0°E) 12738H

There is so much mess with keys working for 4,8E and 0,8W

Quote from georgeflu

Quote from atkmani

Quote from georgeflu

jens , looking your groupkey channel hash: 30223BBA, group id: 0000 i think that your service reference is 1:0:1:3E8:1:5E:300000:0:0:0 ?

does not conflict the other frequency each other? 12360 /12322 ???

It is not oscam problem mine Vu+solo2 under ATV 6.4 or Pli 7.2 or 7.3 put every channel from 12360 and 12322 as from 12360 or 12322 depends what frequency was last scanned.

Under BlackHole everything works Ok I will send some examples in next post.

---

For example we can use Animal Planet Turkey HD (good because only one channel wit this name)

should be Astra 4A 12322.00 V DVB-S2 8PSK 27500 5/6e42a0da22f2b337d1b27bcb.jpg

service reference : 1:0:1:514:1:5E:300000:0:0:0 and from lamedb

--------------------------------------------------------------------

0514:00300000:0001:005e:1:0:0

Animal Planet Turkey HD

p:,c:000514,c:010515,c:030514,c:050001,C:0e00

--------------------------------------------------------------------

next post after rescanning frequency 12322.00

---

For example we can use Animal Planet Turkey HD (good because only one channel wit this name)

should be Astra 4A 12322.00 V DVB-S2 8PSK 27500 5/6 4,8E

picture shows Animal Planet Turkey HD as on 12360.00 MHz

service reference : 1:0:1:514:1:5E:300000:0:0:0 and from lamedb

--------------------------------------------------------------------

0514:00300000:0001:005e:1:0:0

Animal Planet Turkey HD

p:,c:000514,c:010515,c:030514,c:050001,C:0e00

--------------------------------------------------------------------

next post after rescanning frequency 12322.00

Display More

this is a common issue, i don't know why it happens, but a solution is ...

now you are scaning and having service reference : 1:0:1:3E8:1:5E:300000:0:0:0 sr (for disc world as example) .

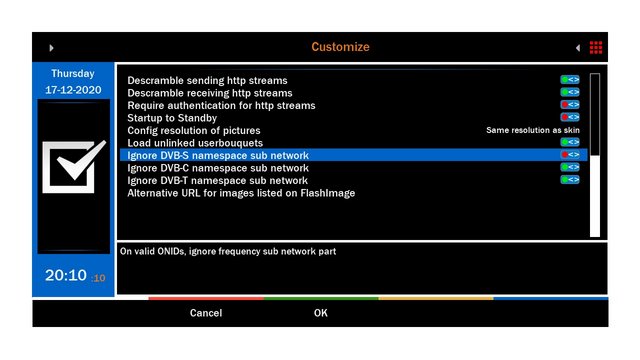

going to customize menu , and turn off the "ignore dvbs namespace sub network" save, and than scan again both frequencies (selecting clear before scan) all channels will be in their correct frequency and working...

but... than the service reference will turn to : 1:0:1:3E8:1:5E:30B022:0:0:0 and the groupkey will change from

P 30223BBA GROUP 0500 ;

to

P 0187D4E6 GROUP 0500 ;

and P ACE05CA0 GROUP 0800 ;

(because a few of them channels are working, using common keys with 0.8W services...)

lacierva doing the same (ignore namespace... and scan frequency by clean channels first) i think will change and yours service reference...

Display More

Yeah just wonder why BH 3.1.0 don't have this issue

look

service reference : 1:0:1:514:1:5E:300000:0:0:0 ATV 6.4

service reference : 1:0:1:514:1:5E:30B022:0:0:0 BH 3.1.0

lamedb

-------------------------- ATV 6.4-----------------------------------

0514:00300000:0001:005e:1:0:0

Animal Planet Turkey HD

p:,c:000514,c:010515,c:030514,c:050001,C:0e00

----------------------------BlackHole 3.1.0----------------------

0514:0030b022:0001:005e:1:0

Animal Planet Turkey HD

p:,c:000514,c:030514,c:040516,c:050001,C:0e00

------------------------------------------------------------------------

Well I know how delete all channels but it's to much work eg 27,5W

I can do it if it can provide some greater propose, since only those two transponders are fucked up!

personally if I want to use fx 12360 it needs only quick rescanning and vice versa for 12322.

Hard part was to figure out why oscam wasn't working of course Blackhole was my last testing ground and with zero problems!

BTW since lamedb entry looks to me exactly same

------------------------- lamedb before rescanning 12322----------------------------------

0514:00300000:0001:005e:1:0:0

Animal Planet Turkey HD

p:,c:000514,c:010515,c:030514,c:050001,C:0e00

--------------------------lamedb after rescanning 12322-----------------------------------

0514:00300000:0001:005e:1:0:0

Animal Planet Turkey HD

p:,c:000514,c:010515,c:030514,c:050001,C:0e00

---------------------------------------------------------------------------------------------------------

where from info on upper band come from? before erscanning it was 12360'MHz


Quote from jenseneverest

Quote from atkmani

For example we can use Animal Planet Turkey HD (good because only one channel wit this name)

should be Astra 4A 12322.00 V DVB-S2 8PSK 27500 5/6 4,8E

picture shows Animal Planet Turkey HD as on 12360.00 MHz

service reference : 1:0:1:514:1:5E:300000:0:0:0 and from lamedb

Interesting, so it is not an EMU problem at all in this case (But it appears some users also have a config issue)

I just blind scanned 4.8e indeed there is only one Animal Planet Turkey HD

12322 V 27500

Display More

Quote from jenseneverest

Quote from atkmani

For example we can use Animal Planet Turkey HD (good because only one channel wit this name)

should be Astra 4A 12322.00 V DVB-S2 8PSK 27500 5/6 4,8E

picture shows Animal Planet Turkey HD as on 12360.00 MHz

service reference : 1:0:1:514:1:5E:300000:0:0:0 and from lamedb

Interesting, so it is not an EMU problem at all in this case (But it appears some users also have a config issue)

I just blind scanned 4.8e indeed there is only one Animal Planet Turkey HD

12322 V 27500

Display More

Not sure what the problem is but he said box was Vu+solo2 same as mine under ATV 6.4 or Pli 7.3 I can't have both 12322 and 12360 MHz working only the last frequency scanned Last BlackHole don't have this problem (all images use exactly same satellites.xml file)

BTW this problem only concern those two transponders.

After rescanning frequency 12322.00

service reference : 1:0:1:514:1:5E:300000:0:0:0 looks same as before

PID's looks same but now we have PMT PID 0x56e (1390d) still Animal Planet Turkey HD

and from lamedb

--------------------------------------------------------------------

0514:00300000:0001:005e:1:0:0

Animal Planet Turkey HD

p:,c:000514,c:010515,c:030514,c:050001,C:0e00

--------------------------------------------------------------------

But now all channels from 12360 MHz lost PMT Pid'sd7502b0bede5875d30d9cdd.jpg

oscam log after rescanning 12322

h (webif) all debug_level=2

c (dvbapi) Demuxer 0 ecmpid 0 CAID: 0E00 ECM_PID: 1774 PROVID: 000000

c (dvbapi) Demuxer 0 found 1 ECM pids and 4 STREAM pids in CA PMT

c (dvbapi) Demuxer 0 found channel in cache and matching prio -> start descrambling ecmpid 0

c (dvbapi) Demuxer 0 trying to descramble PID 0 CAID 0E00 PROVID 000000 ECMPID 1774 ANY CHID PMTPID 056E VPID 0514

c (ecm) get cw for ecm:

c (ecm) 81 30 3D 30 37 20 0E 00 00 00 00 92 A0 00 97 83

c (ecm) EC 38 69 E1 AD D9 0F 70 26 3A 8A B2 00 51 40 00

c (ecm) 00 9B 13 EA 46 7D 19 82 4E 97 3D 46 64 6F 40 9C

c (ecm) AA FC C7 B8 51 ED 24 72 29 90 29 CA D8 07 36 56

r (emu) csaUsed: 0, xorMode: 0, ecmSrvid: 0514, hashModeCw: 0, modeCW: 0

r (emu) channel hash: 30223BBA, group id: 0000

r (emu) calculated cw 0: 9740A4F29EE0CD04

r (emu) calculated cw 1: 94F8D06DEFFB0BAD

r (emu) calculated cw 2: 4A04408CD00E4AB5

r (emu) calculated cw 3: 4A04408CD00E4AB5

r (emu) calculated cw 4: 4A04408CD00E4AB5

r (emu) calculated cw 5: B6F8EAD30EDAE04F

r (emu) calculated cw 6: 61AB5883015E92E3

r (emu) calculated cw 7: 8FDFE35EAE29383E

c (dvbapi) Demuxer 0 found 1 ECM pids and 4 STREAM pids in PMT

c (ecm) localuser (0E00@000000/0000/0514/40:33D11EBD5509384602B5A99A22A195ED): found (5 ms) by emulator

Quote from lacierva

service reference : 1:0:1:3E8:1:5E:30B021:0:0:0

namespace orbital poss 0030B021-4.8 E

Quote from georgeflu

epg for those channels is another story...

you have to create your own "extra.sources" and "extra.channels" for epg, but this discuss is for another thread...

jens , looking your groupkey channel hash: 30223BBA, group id: 0000 i think that your service reference is 1:0:1:3E8:1:5E:300000:0:0:0 ?

does not conflict the other frequency each other? 12360 /12322 ???

Display More

It is not oscam problem mine Vu+solo2 under ATV 6.4 or Pli 7.2 or 7.3 put every channel from 12360 and 12322 as from 12360 or 12322 depends what frequency was last scanned.

Under BlackHole everything works Ok I will send some examples in next post.

For example we can use Animal Planet Turkey HD (good because only one channel wit this name)

should be Astra 4A 12322.00 V DVB-S2 8PSK 27500 5/6e42a0da22f2b337d1b27bcb.jpg

service reference : 1:0:1:514:1:5E:300000:0:0:0 and from lamedb

--------------------------------------------------------------------

0514:00300000:0001:005e:1:0:0

Animal Planet Turkey HD

p:,c:000514,c:010515,c:030514,c:050001,C:0e00

--------------------------------------------------------------------

next post after rescanning frequency 12322.00

For example we can use Animal Planet Turkey HD (good because only one channel wit this name)

should be Astra 4A 12322.00 V DVB-S2 8PSK 27500 5/6 4,8E

picture shows Animal Planet Turkey HD as on 12360.00 MHz

service reference : 1:0:1:514:1:5E:300000:0:0:0 and from lamedb

--------------------------------------------------------------------

0514:00300000:0001:005e:1:0:0

Animal Planet Turkey HD

p:,c:000514,c:010515,c:030514,c:050001,C:0e00

--------------------------------------------------------------------

next post after rescanning frequency 12322.00
