i tested today but not working for me (it was working before).
Can you confirm ?
i tested today but not working for me (it was working before).
Can you confirm ?
You have the original receiver and want to extract BK and RSA for CAiD 1802 ?
I receive that message in the LOG when i do not have the correct BiSS keys in my SoftCAM.key file.
If you have the correct BiSS keys in the SoftCAM.key file then you receive this message:
I have OScamEMU r11573-798 and OScamEMU r11704-798. On both of them i have the key format in the LOG.
You can read also here that your LOG should look like that: Note 3
You can read more abou the format here: BiSS key formats in SoftCam.Key
Display Moresid : 2018
key :1111110011111100
i added it in SoftCam.key
like :
F 2018 00 1111110011111100 ; hd16
F 2018 01 1111110011111100 ; hd16
I'm not sure if your key format is ok.
When you set your receiver on a BiSS coded channel (CAiD 2600) in your OScamEMU LOG you receive the requested key format:
2021/12/29 20:59:24 0238FD64 c (dvbapi) Demuxer 0 ecmpid 0 CAID: 2600 ECM_PID: 1FFF PROVID: 000000
2021/12/29 20:59:24 0238FD64 c (dvbapi) Demuxer 0 found 1 ECM pids and 3 STREAM pids in CA PMT
2021/12/29 20:59:24 0238FD64 c (dvbapi) Demuxer 0 trying to descramble PID 0 CAID 2600 PROVID 000000 ECMPID 1FFF ANY CHID PMTPID 1C21 VPID 0201
2021/12/29 20:59:24 53E406F7 r (emu) Key not found: F 066DF30D
2021/12/29 20:59:24 53E406F7 r (emu) Key not found: F 7F25246C
2021/12/29 20:59:24 53E406F7 r (emu) Key not found: F 01F40005
2021/12/29 20:59:24 53E406F7 r (emu) Key not found: F 00C91021
2021/12/29 20:59:24 53E406F7 r (emu) Key not found: F 00C91011
2021/12/29 20:59:24 53E406F7 r (emu) Key not found: F 00C90201
2021/12/29 20:59:24 53E406F7 r (emu) Key not found: F 00C91C21
2021/12/29 20:59:24 53E406F7 r (emu) Key not found: F 00C91FFF
2021/12/29 20:59:24 53E406F7 r (emu) Key not found: F A11FEED5
2021/12/29 20:59:24 53E406F7 r (emu) Example key based on namespace hash: F 066DF30D 00000000 XXXXXXXXXXXXXXXX ; 16.0E 0005:01F4:00C9 added: 2021-12-29 @ 20:59
2021/12/29 20:59:24 53E406F7 r (emu) Example key based on universal hash: F 7F25246C 00000000 XXXXXXXXXXXXXXXX ; av:3 pmt:1C21 sid:00C9 added: 2021-12-29 @ 20:59
2021/12/29 20:59:24 53E406F7 r (emu) ECM failed: Key not found
Display More
So check your OScamEMU LOG and be sure what kind of key format your OScamEMU is expecting.
There are no BiSS smartcards: wikipedia.org
But you can use a OScam server to share also BiSS keys. There is no difference between BiSS keys and other keys, the system is the same.
If you install OScam-emu server, you will have a reader called emulator that will read keys from SoftCAM.key file and can share that key to all clients.
What is the problem ?
You can share BiSS keys exactly like all other keys.
- p: abcde - Provider name
- c00xxxx - Video PiD
- c01xxxx - Audio PiD (MPEG)
- c02xxxx - Teletext PiD
- c03xxxx - PCR PiD
- c04xxxx - Audio PiD (AC3)
- c05xxxx - Video Type
- c09xxxx - Subtitle
- C:xxxx - CAiD
- f:x - flag
f:1 = Do not update the service parameters
f:4 = Forced PID (no PMT)
f:5 = f1 + f4
f:1000 - noEIT (Event Information Table)
If you go in manual mode and set one audio track then only one audio track will be available.
- c01xxxx - Audio PiD (MPEG)
- c04xxxx - Audio PiD (AC3)
Sorry if i bother you with this newbie's question: what is the diference betwen Ncam and OScam ?
I'm using OScam and i wonder what is the advantage to switch to Ncam.
Problem solved.
After 48h of continuous EMM, the Entitlements were updated.
I was just concerned that something is wrong because is taking so long and so many EMM.
2021/03/13 17:28:24 56B05F67 c (dvbapi) Demuxer 0 ecmpid 0 CAID: 0963 ECM_PID: 0503 PROVID: 000000
2021/03/13 17:28:24 56B05F67 c (dvbapi) Demuxer 0 ecmpid 1 CAID: 0961 ECM_PID: 0503 PROVID: 000000
2021/03/13 17:28:24 56B05F67 c (dvbapi) Demuxer 0 ecmpid 2 CAID: 0960 ECM_PID: 0503 PROVID: 000000
2021/03/13 17:28:24 56B05F67 c (dvbapi) Demuxer 0 found 3 ECM pids and 4 STREAM pids in CA PMT
2021/03/13 17:28:24 56B05F67 c (dvbapi) Demuxer 0 trying to descramble PID 0 CAID 0963 PROVID 000000 ECMPID 0503 ANY CHID PMTPID 0101 VPID 0205
2021/03/13 17:28:25 31E1828B r (reader) SkyUK [videoguard2] classD3 ins54: no cw --> Card needs pairing/extra data
2021/03/13 17:28:25 31E1828B r (reader) SkyUK [videoguard2] classD3 ins54: no cw --> Tier expired
2021/03/13 17:28:25 56B05F67 c (ecm) dvbapi (0963@000000/FFFF/0F52/B5:AC06C296BEBC4582D63E4B00B2BED952:0F06001020000000): not found (139 ms) by SkyUK
2021/03/13 17:28:25 56B05F67 c (dvbapi) Demuxer 0 restarting decoding requests after 1 ms with 1 enabled and 2 disabled ecmpids!
2021/03/13 17:28:25 56B05F67 c (dvbapi) Demuxer 0 trying to descramble PID 0 CAID 0963 PROVID 000000 ECMPID 0503 ANY CHID PMTPID 0101 VPID 0205
2021/03/13 17:28:26 56B05F67 c (ecm) dvbapi (0963@000000/FFFF/0F52/B5:AC06C296BEBC4582D63E4B00B2BED952:0F06001020000000): not found (1 ms) by SkyUK
2021/03/13 17:28:26 56B05F67 c (dvbapi) Demuxer 0 restarting decoding requests after 2 ms with 1 enabled and 2 disabled ecmpids!
2021/03/13 17:28:26 56B05F67 c (dvbapi) Demuxer 0 trying to descramble PID 0 CAID 0963 PROVID 000000 ECMPID 0503 ANY CHID PMTPID 0101 VPID 0205
2021/03/13 17:28:27 56B05F67 c (ecm) dvbapi (0963@000000/FFFF/0F52/B5:AC06C296BEBC4582D63E4B00B2BED952:0F06001020000000): not found (1 ms) by SkyUK
Display More

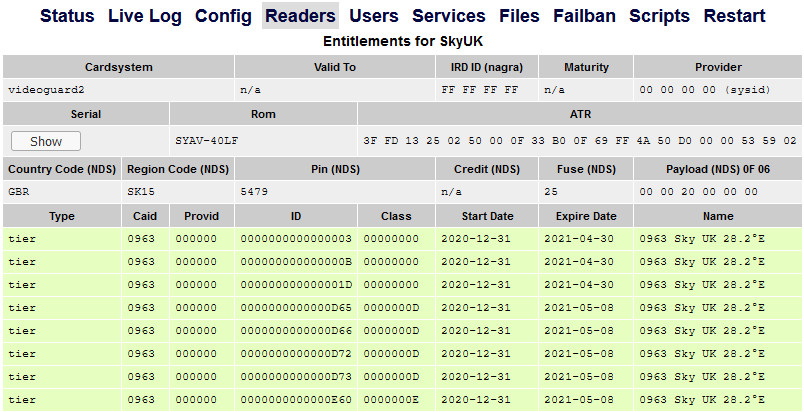

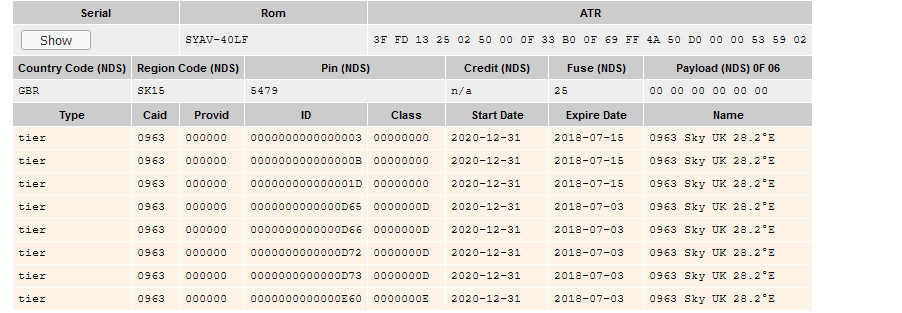

I have SkyUK CAiD 0963 smartcard, no subscription to Sky. I was using the card to watch FreeSAT UKwith no problem. And now... the card is not updating anymore the Entitlements. I receive the EMM and they are written to card but Entitlements are not updated. Is there some special settings that i mus do?
Any version available for Raspberry Pi 3 ?
